Configuring Entrypoints

An entrypoint connects Agent Mesh to an external system. It translates that system's protocol into Agent-to-Agent (A2A) messages, routes inbound requests to the agent named in its configuration, and publishes the agent's responses back to the source. Each entrypoint targets one external system: a Slack workspace, a Microsoft Teams tenant, a Model Context Protocol (MCP) client, or a Solace broker.

You create and manage entrypoints from the Entrypoints page in the Agent Mesh UI, or you can define them as version-controllable YAML with the sam CLI. This page covers the shared model that every entrypoint type follows. For the fields specific to one type, see its per-type page.

Entrypoint Types

Agent Mesh supports the following entrypoint types.

Type	Purpose	Page
Slack	Drive agents from Slack channels, threads, and direct messages over Socket Mode	Slack Entrypoints
Microsoft Teams	Drive agents from Teams personal chats, group chats, and team channels through the Bot Framework	Microsoft Teams Entrypoints
MCP	Expose Agent Mesh agents as Model Context Protocol tools to Claude Code, MCP Inspector, and other MCP clients	MCP Entrypoints
Event Mesh	Subscribe to Solace broker topics and route each received event to an agent or workflow	Event Mesh Entrypoints

Each type has its own credentials and its own configuration fields. The rest of this page covers the parts that are the same for every type: how an entrypoint is created and deployed, what its status fields mean, how credentials are handled, how it routes to an agent, and how access to entrypoint operations is controlled.

Opening the Entrypoints Page

In the left navigation sidebar, expand Builder and select Entrypoints. This page lists every entrypoint in Agent Mesh in a single table. Each row shows the entrypoint's name, status, type, and creator, plus a More menu with the actions for that entrypoint. A name filter narrows the list.

Creating an Entrypoint

To create an entrypoint, select Create Entrypoint, then select the tile for the entrypoint type you want to create. Every entrypoint requires:

• Name: 3 to 255 characters, unique within Agent Mesh.

• Description: 10 to 1,000 characters, free-form text.

• Credentials: the tokens, secrets, or connection details the target system requires. The set of credentials is specific to each entrypoint type.

Most entrypoint types also expose optional configuration, such as the Default Agent that handles messages when the user does not name one inline. For the per-type field set, see the page for that entrypoint type.

When you save a new entrypoint, its initial deployment status is not_deployed. Select Deploy to launch it against the external system.

How Deployment Works

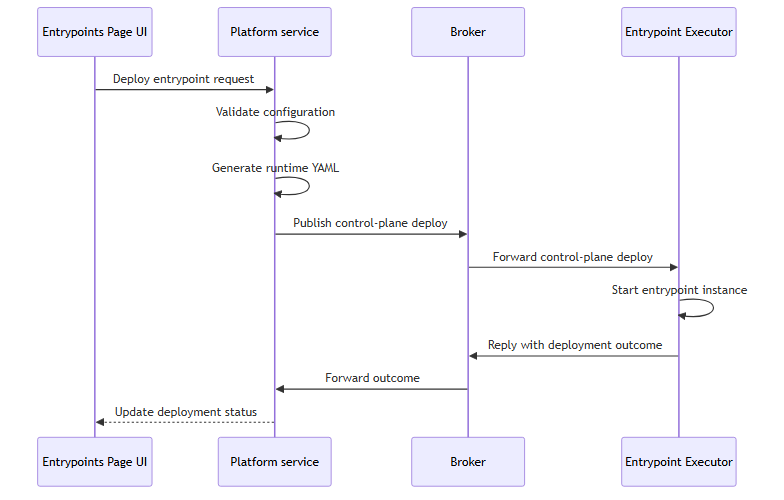

Deploying an entrypoint is a control-plane operation. When you select Deploy, the Platform service validates the configuration, generates the runtime YAML, and sends a deployment request to the Entrypoint Executor over the broker. It starts the entrypoint instance and reports the outcome back to the Platform service, which updates the UI.

The deploy request runs synchronously. When the Entrypoint Executor is unreachable, the request fails and the entrypoint stays in not_deployed or deploy_failed.

Entrypoint Status Fields

An entrypoint carries two independent status fields.

Deployment status reflects the persisted intent: whether the Platform service has successfully asked the Entrypoint Executor to run this entrypoint.

Deployment status	Meaning
not_deployed	The entrypoint exists in the database but has never deployed, or has been undeployed
deployed	The most recent deploy or update completed successfully
deploy_failed	The most recent deploy or update request failed

Runtime status reflects the live signal: whether an Entrypoint Executor instance is currently serving this entrypoint.

Runtime status	Meaning
running	An Entrypoint Executor instance is serving this entrypoint
starting	The entrypoint was deployed within the past 30-second grace window and has not yet reported in
disconnected	The entrypoint was deployed more than 30 seconds ago but no Entrypoint Executor instance is reporting in
stopped	No Entrypoint Executor instance is serving the entrypoint

Managing Deployed Entrypoints

After an entrypoint is deployed, Agent Mesh tracks configuration drift, monitors connection status, and lets you download the entrypoint configuration as YAML.

Configuration Drift Detection

When an entrypoint deploys, the Platform service stores a SHA-256 hash of its name, description, type, and configuration values as a snapshot. Later edits flip the sync status from in_sync to out_of_sync. The running instance keeps serving its deployed snapshot until you select Update on the entrypoint, which redeploys it with the current configuration.

Connection Status Monitoring

Each deployed entrypoint publishes a discovery card to the broker every 60 seconds. During the first 3 minutes after startup, the publish interval drops to 10 seconds to surface new entrypoints sooner. The Platform service tracks these cards and sets the runtime status to running while at least one instance is reporting in.

Credential Handling

Entrypoint configurations include secrets such as broker passwords and Slack tokens. API responses redact these values, displaying <REDACTED> in place of the stored value. If a client sends <REDACTED> back on a PUT or PATCH, the Platform service preserves the existing stored value rather than overwriting it.

Downloaded YAML files replace secrets with environment-variable placeholders, so the file is safe to commit to source control. The secret values are injected at deployment time from the environment.

Downloading an Entrypoint

Every entrypoint detail panel has a Download action that exports the entrypoint configuration as a YAML file for version control or infrastructure-as-code workflows. Downloaded files use ${ENV_VAR} placeholders for secrets.

Routing Traffic to an Agent

An entrypoint routes inbound traffic to the agent named in its Default Agent field. The Event Mesh entrypoint is the one exception: it routes per rule, and each rule names a Target Agent or Target Workflow. Every other entrypoint type carries a single agent reference in its own configuration.

Every agent that receives traffic from an entrypoint acts under the entrypoint's credentials and inherits the same access permissions in the external system. You cannot grant one agent read-only access and another agent write access on the same entrypoint. Security boundaries live in the external system, not in Agent Mesh. To give different agents different levels of access to the same system, create a second entrypoint with separate credentials and route each agent to the entrypoint that matches its required scope.

To change which agent receives traffic, edit the entrypoint and update the agent reference. The new routing takes effect after you select Update on the deployed entrypoint.

Editing and Deleting Entrypoints

Edit an entrypoint at any time from the Entrypoints page. Every field except Type is mutable, including the name and the credentials. Saving an edit updates the stored configuration but does not redeploy. To apply the new configuration to the running instance, select Update from the entrypoint's More menu on the deployed entrypoint.

The Type field is immutable after creation. To switch an entrypoint to a different type, delete it and create a new one.

Delete an entrypoint from its detail panel. When the entrypoint is currently deployed, the Platform service undeploys it through the Entrypoint Executor before removing the database record. The delete fails if the undeploy step fails, so durable broker queues are never orphaned. Retry the delete after you resolve the underlying Entrypoint Executor problem.

Deletion removes the entrypoint from Agent Mesh. The external system is untouched. Slack tokens, Azure Bot registrations, and Solace broker configurations remain in place and require separate cleanup.

Access Control

Entrypoint operations require specific role-based access control (RBAC) capabilities.

Capability	Purpose
entrypoint:_:create	Create entrypoints
entrypoint:*:read	View and list entrypoints, schemas, and configuration
entrypoint:*:update	Modify entrypoints and their credentials
entrypoint:*:delete	Delete entrypoints
entrypoint:*:deploy	Deploy, update, and undeploy entrypoints

For instructions on assigning capabilities to users, see RBAC Reference.

Define Entrypoints as Code Instead

The Agent Mesh UI is one way to configure entrypoints; the sam CLI is the other. With declarative config, you describe entrypoints as YAML and reconcile them into Agent Mesh with sam config apply, the version-controllable path that suits GitOps and automation. Each per-type page has a companion CLI page. For the Slack CLI walkthrough, see Slack Entrypoints with the CLI.

Next Steps

You have reviewed how entrypoints work. Most readers next want to configure a specific type:

• Slack Entrypoints

• Microsoft Teams Entrypoints

• MCP Entrypoints

• Event Mesh Entrypoints
