Designing Your Event-Driven Architecture

This tutorial gets you started using Event Portal to design an event-driven architecture (EDA). You'll use Designer to complete the following tasks:

  1. Create an Application Domain
  2. Create Objects in Your Application Domain
  3. Import Objects
  4. Tour an Application Domain
  5. Edit an Application
  6. Find Objects in Catalog

Before You Begin

  • Log into PubSub+ Cloud. For more information, see Accessing PubSub+ Cloud
  • Ensure that your organization has access to Event Portal 2.0. When you log in you should see the Designer, Catalog, and Runtime Event Manager tools under Event Management.

    Screenshot showing the elements described in the surrounding text.

  • Ensure that you have a user role that gives you permissions for Event Portal. At minimum, you need the Event Portal Manager role. For more information, see Roles and Permissions. If you are unable to access Event Portal, contact an Administrator to update your permissions.

Create an Application Domain

To get started with Designer, you need an application domain to work in. Application domains generally represent different lines of business, development teams, or any other logical categories that makes sense for your EDA and development process. You will create an application domain for this tutorial.

When you create an application domain, you set one or more topic domains. Topic domains define the top level categories in your topic hierarchy and can be used to start the topic addresses for events within the application domain. To learn more, see Topic Addresses.

To create an application domain perform these steps.

  1. In the Cloud Console, click the Designer card or the icon on the left navigation bar.
  2. In the top, right corner, click Create Application Domain.
  3. In the Name field, type "Tutorial".
  4. In the Description field, add information about the application domain, for example: "Application domain for my tutorial."
  5. Keep All topic addresses within this application domain must be unique selected. Using unique topic addresses for each event helps organize your topic hierarchy and your event data.
  6. To specify a topic domain, perform these steps:
    1. In the Broker Type list, select Solace. Application domains can include both Solace and Kafka events but each event broker type must have its own topic domains.
    2. In the Topic Domain field, type "learn/designer".
  7. Select All topic addresses within this application domain must use a topic domain to require the topic addresses for every event in the application domain to start with a topic domain. This option becomes selectable after you create a topic domain.

    Screenshot depicting the options described in the surronding text.

  8. Click Save.

Your application domain is created. Event Portal displays the list of application domains with your new application domain selected.

Create Objects in Your Application Domain

After you create an application domain you can open it:

  • In the list of application domains, click the name of application domain you just created.

Across the top of the page you can select tabs for each type of object that you can create in Designer.

Screenshot depicting the options described in the surronding text.

Object Type Description

Application

An application in Event Portal represents client software that produces and consumes events. Within an application, a consumer represents a queue on an event broker or a consumer group in a Kafka event flow. Applications can both consume events and publish events to be consumed by other applications. To learn about creating and updating applications, see Applications.

Event

In Event Portal, an event defines the properties that describe and categorize the actual event instances published by client applications. You create events in Designer to define the messages that applications publish for every instance of an event as it happens in real-time.

Every event has a topic address that defines the topic for each event instance at runtime. Topic addresses can include variable values to represent data specific to an event instance. To learn about creating and updating events, see Events.

Schema

Events in Event Portal references a schema that describes the payload of the event. To learn about creating and updating schemas, see Schemas.

Enumeration

An enumeration is a variable with a limited set of literal values. You can use enumerations to define values for a level in a topic address or topic domain. To learn about creating and updating enumerations, see Enumerations.

Event APIs

You can use event APIs to curate your event data into packages that you can share with others to use to build new runtime applications. You can share event APIs with application developers by generating and sharing an AsyncAPI document. To learn about creating and updating event APIs, see Event APIs

Event API Products

You can bundle one or more event APIs into an Event API Product that you can provide to other organizations so they can consume the events that you have included in your event APIs. An Event API Product contains one or more event APIs plus service plan details for deploying the product to allow others to consume the events. To learn about creating and updating Event API Products, see Event API Products.

Create an Event

Let's get started by adding an event to your new application domain:

  1. In the application domain, select the Events tab.
  2. Click Create Event.
  3. In the Name field, type "My First Event".
  4. Select Allow Event to be shared across application domains to make the event available to applications in other application domains.
  5. Leave the Version field set to 0.1.0. Each object can have multiple versions, allowing you to have different versions at different stages of your development cycle.
  6. In the Description field, type "The first event in my tutorial".

    Screenshot depicting the options described in the surronding steps

  7. In the Broker Type list, select Solace. Events can have either a Solace or Kafka topic address.
  8. Click in the Topic Address field and select the topic domain learn/designer to add the topic domain to the address, then type "event" to complete the topic address.

    Screenshot depicting the options described in the surronding steps

  9. Click Manage Schemas. For this event we'll set a primitive schema.
  10. Select Primitive and then select String from the list of Primitive types.

    Screenshot depicting the options described in the surronding steps

  11. Click Select Primitive.
  12. Click Save Event.

Create an Application

Now, let's create an application that publishes the event.

  1. In the application domain, select the Application tab.
  2. Click Create Application.
  3. In the Name field, type "My First Application".
  4. In the Broker Type list, select Solace. Applications can be associated with either a Solace or Kafka event broker.
  5. Leave the Version field set to 0.1.0.
  6. In the Description field, type "Application to publish my first event".

    Screenshot depicting the options described in the surronding steps

  7. Click Manage Events.
  8. Click Expand next to the event you created to see the list of event versions.
  9. Click Pub next to the event version.

    Screenshot depicting the options described in the surronding steps

  10. Click Save Application.

You now have an application domain containing an application that publishes an event.

Published events have one or more applications that subscribe to the event to get the information in the event message. Instead of creating another application to subscribe to our event, we're going to import a sample application domain to show you how event flows appear in Designer.

Import Objects

If you're brand new to EDA, you may create all of your objects in Event Portal from scratch as we've just done in Designer, but there are other ways to add objects to Event Portal.

  • If you have an existing EDA you can scan your existing event brokers and use your runtime data to import objects into Designer. For more information, see Discovering Runtime Data.
  • If you want to view sample EDA designs, you can import sample application domains into Designer.

To import a sample application domain:

  1. Click this link to the Sample Application Domains page.
  2. In the Retail row. right-click the Download link.
  3. Select Save link as and save the JSON file to your Desktop.
  4. In the Cloud Console, click the Designer icon on the left navigation bar.
  5. On the Application Domains page, click More ActionsScreenshot showing the settings described in the surrounding steps. and select Import Application Domains.

    Screenshot depicting the options described in the surronding steps

  6. Locate and select the JSON file you downloaded.
  7. Click Open.

After the import completes, you'll see three new application domains in Designer. We'll take a look around one of them so you can learn more about designing the objects in an event flow.

Tour an Application Domain

Let's tour around an example application domain.

  1. In the Cloud Console, click the Designer icon on the left navigation bar.
  2. Select the checkbox next to Acme Retail - Store Operations.

    Screenshot depicting the options described in the surronding text.

    In the information panel you can see information about the application domain including:

    • how many of each object type it contains
    • the level of access you have
    • the description
    • the topic domain and topic address requirements

  3. Click Open Application Domain. You can see the list of applications in the application domain. You can click the other tabs to see the list of each type of object.

    Screenshot depicting the options described in the surrounding text.

Tour an Application

Let's take a closer look at an application:

  • On the Application tab, click Point of Sale System.

Screenshot depicting the options described in the surronding text.

The Application Details page shows the list of versions for the application. The most recent version is selected and information about the selected version displays.

The Versions panel includes these options and details:

  • The version list shows every version of the application. Clicking a version displays the version details.
  • The version state displays next to the version numer. The state can be one of Draft, Released, Deprecated, or Retired. For more information, see Object Versions and Lifecycle States.
  • Click More Actions for a version to see additional options for the version.
  • Click Add New Version at the top of the panel to create a new version

The Application Version Details panel includes these options and details:

  • Version—the version number and state. Clicking Change State allows you to update the state.
  • Version name—optional name given to the version
  • Description—optional description given to the version
  • Event Flows—the list of events that the application publishes and consumes. We'll discuss event flows more in the next task.
  • Appears In—the list of environments that the application has been added to. We'll cover this in the next tutorial: Creating a Model of Your Event-Driven Architecture.

Edit an Application

You can edit a version of an application only if it is in Draft state. For the Point of Sale System, all versions are Retired or Released. Although you can change a Released version back to Draft, it's best practice to create a new version.

  1. In the Version panel for the Point of Sale System, click the most recent Released version.
  2. Click More ActionsScreenshot showing the settings described in the surrounding steps.in the version list or the version details.
  3. Select Duplicate. Designer creates a new Draft version of the application and opens it for editing.

    Screenshot depicting the options described in the surronding text.

  4. Let's take a closer look at the Event Flows while the application version is open for editing.

    Event flows in the application specify events that the application can publish, subscribe to, and consume. For more information, see Creating an Application

    • Published events are events generated by the application and consumed by other applications.
    • Subscribed events indicate the intention to consume the event. You might specify subscribed events early in the design process when you're not ready to specify all of the consumer details
    • Consumers specify Solace event queues, Solace direct clients, and Kafka consumer groups that the application gets event messages from. If you have added a consumer to an application, you can specify a subscription to the same event but you don't need to.
  5. Click the Consumers tab. You'll see the details for two consumers including the name, type, and topic subscription.

    Screenshot depicting the options described in the surronding text.

  6. Click the Events tab and then click Sub. You'll see subscriptions for the same two consumers.

    Screenshot depicting the options described in the surronding text.

  7. Click Pub. You'll see the event published by the application.
  8. Click Save Version to save the new application version. You can still view the application details even though it is no longer open for editing.
  9. Now, we're going to open one of the published events. Under Event Flows, click the Events tab and then click Pub
  10. Click More ActionsScreenshot showing the settings described in the surrounding steps.for the Retail Order event and select Open Event.

Tour an Event

Let's take a closer look at the event we just opened from the application. You can see that application and events pages are laid out in a similar way.

The Event Version Details panel includes some details that are specific to events:

  • Topic Address—shows the topic address for the event.
  • Schema—specifies the schema that the event references. If the event references a complex schema, you can click Expand to view the schema or More ActionsScreenshot showing the settings described in the surrounding steps.> Open Schema to open the schema object.
  • Referenced By—lists all of the applications and event APIs that publish or subscribe to the event.

Now we'll create a new draft version and take a look at topic addresses:

  1. In the Version list, for the Retail Order event, click More ActionsScreenshot showing the settings described in the surrounding steps.next to the most recent version and details and select Duplicate. Designer creates a new Draft version of the event and opens it for editing.

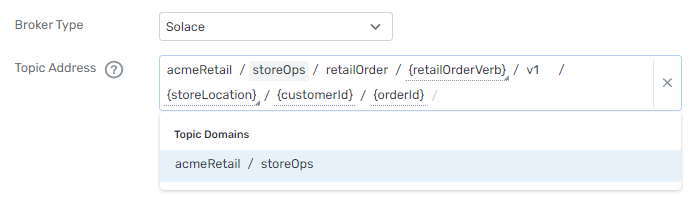

    In the new event version, examine the topic address field. Each hierarchical level in the address is separated by a slash /.

    The first three levels of the address are literal values. If you click either of the first two levels you can see that acmeRetail/storeOps is the topic domain for events in the application domain.

    Screenshot depicting the options described in the surrounding text.

    Most of the subsequent levels are variable values, meaning they will be replaced by a value specific to the event instance in the runtime. Some variables, such as customerID are unbounded, which means there are no limitations on the potential values. Other variables, such as storeLocation have a limited set of values. The list is set by an enumeration in Designer. For more information, see Enumerations.

  2. To add a variable to a topic address, click in the Topic Address field after the final slash and type {, then click Configure Variable. You can select an Enumeration and Version or type a Name for an unbounded variable.

    Screenshot depicting the options described in the surronding text.

  3. In the name field, type "productid" and click Update to add the variable to the topic address.
  4. Click Save & Close to save the new version of the event and return to the list of events in the application domain.

Find Objects in Catalog

Catalog is a tool in Event Portal that provides library for all of the objects and object versions created in Event Portal. All objects created in Designer and objects imported using Runtime Event Manager are automatically available in Catalog. You can see shared objects in all application domains and all objects in the application domains that you have access to. If you have access to the application domain, you can open the objects to view or update them in Designer.

Lets find the event we were just touring using Catalog:

  1. In the Cloud Console, click the Catalog icon on the left navigation bar.
  2. Select the Events tab. You can see all of the events in Event Portal, with their topic addresses.
  3. Click Filter . You can filter objects by application domain, by objects with at least one version at a particular state, and other criteria, depending on the type of object. Since the list of objects is short we don't need to apply a filter to find the event.

    Screenshot depicting the options described in the surronding text.

  4. Click anywhere below the filter area to hide the filters.
  5. Click the search field and start typing "Order". The list of objects updates as you type to display only the objects that contain matching content. The list displays all objects that have at least one version that matches the search results.
  6. Click More Actions for the Retail Order event and select Open in Designer.

    Screenshot depicting the options described in the surronding text.

Next Steps

You should now understand the basics of working in Designer and how to use applications, events, schemas, and enumerations. You can take any of these next steps:
